Cleanroom vs. Controlled Environment

controlled environment, life science lab” “cleanroom modular walls, lab cabinets

Figure 1. Life Sciences controlled environment

A “controlled environment” typically refers to a separate space where temperature, humidity, air flow, lighting, or access are controlled to meet a specific need such as manufacturing, testing, research, or material storage. They do not require a specific particle count per volume or filtration. To certify a controlled environment, the temperature and humidity are measured and logged to ensure the environment is meeting required specification.

black modular cleanroom, floor to ceiling cleanroom windows

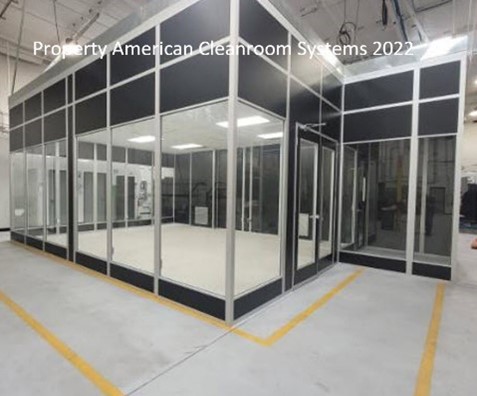

Figure 2. ISO-8 aerospace modular cleanroom

A “cleanroom” refers to a space which meets ISO14644-1 or FED Std 209E cleanroom classification standard. The ISO cleanroom standard includes particles per cubic meter and air changes per hour. The FED cleanroom standard includes particle per cubic foot and air changes per hour. The standards are roughly equivalent but use different units. To certify a cleanroom, the room is particle tested to ensure the designed cleanroom classification is being achieved, air pressure is measured continuously via magnehelic gauges, and filtration is working properly to achieve the required air changes per hour. In pharmaceutical and medical device cleanrooms, it common to use settling plates to measure “viable” contamination.

Cleanrooms can be thought of as “controlled environments” with added requirement of filtration / particle control.

ISO 14644-1 Estándares de salas limpias | Clasificaciones de salas limpias
Clase	Máximo de Partículas/ft³						ISO Equivalente
Clase	>0.1 um	>0.2 um	>0.3 um	>0.5 um	>1 um	>5 um	ISO Equivalente
ISO 1	10	2
ISO 2	100	24	10	4
ISO 3	1,000	237	102	35	8		Class 1
ISO 4	10,000	2,370	1,020	352	83		Class 10
ISO 5	100,000	23,700	10,200	3,520	832	29	Class 100
ISO 6	1,000,000	237,000	102,000	35,200	8,320	293	Class 1,000
ISO 7				352,000	83,200	2,930	Class 10,000
ISO 8				3,520,000	832,000	29,300	Class 100,000

Table 1. ISO Cleanroom Classifications

Requisitos de diseño para clasificaciones de salas limpias
Criterio	Clase 10 ISO4	Clase 100 ISO5	Clase 1000 ISO6	Clase 10,000 ISO7	Clase 100,000 ISO8
Cambios de Aire por HR / Min	500-600 / 8 to 10	300 to 480 / 5 to 8	180 / 3	60 /1	20 /0.33
% de Cobertura por Filtros	90 – 100	60 – 70	20 – 30	7 – 15	4 – 5
CFM por pie Cuadrado	85 – 90	36 – 65	18 – 32	9 – 16	4 – 8
Eficiencia de Filtro	99.9997% ULPAs	99.997% HEPAs	99.997% HEPAs	99.997% HEPAs	99.97% HEPAs

Table 2. Cleanroom Design requirements

Common Applications for Controlled Environments:

Life science laboratories
Engineering laboratories
Laser labs
High energy physics facilities
Hospitals
Cannabis grow rooms
Clean manufacturing
Food processing rooms
Pharmacies
Quality labs

white modular engineering lab, controlled environment, windows

Figure 3. Non classified Engineering lab controlled environment

black laser curtains, controlled environment

Figure 4. Non classified Laser lab controlled environment

Common Applications for Cleanrooms:

ISO-5/class 100 or ISO-6/class 1000 cleanroom classification
- Semiconductor manufacturing cleanroom
- Pharmaceutical manufacturing cleanroom
- Research and development cleanroom
- Laser and optics cleanroom

ISO-7 pharmaceutical cleanroom, cleanroom exhaust hood, cleanroom door

Figure 5. Classified Pharmaceutical cleanroom

ISO-7/class 10,000 cleanroom classification:
- PCB electronics manufacturing cleanroom
- USP797 compounding pharmacy cleanroom (sterile and hazardous)
- Medical device manufacturing cleanroom
- Precision industrial manufacturing cleanroom
- Aerospace composite repair cleanroom

ISO-8/class 100,000 cleanroom classification:
- Cleanroom gown rooms
- Cleanroom Material Pass rooms
- Cleanroom hallways
- Mask manufacturing cleanroom
- 3-d printing cleanroom
- Lamination cleanroom
- Precision industrial manufacturing
- Nutraceutical cleanroom
- Pharmaceutical cream manufacturing
- E-liquid cleanroom
- Food processing/bottling cleanroom
